125704 DODGE - F2B-VSC-20M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125704 DODGE - F2B-VSC-20M
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-VSC-20M
Description (No-Lube/Sealed for Life) - F2B-VSC-20M-NL
Weight (kg) - 0.63

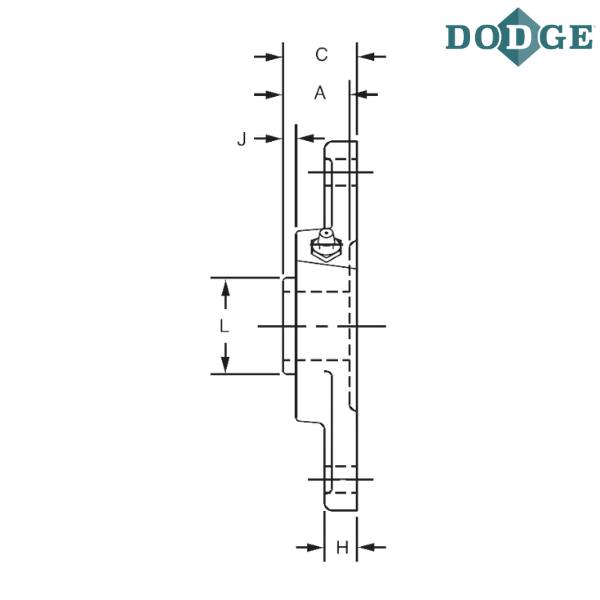

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 112
Thickness (C) mm - 34
Bolt Center to Center Length (D) mm - 89.7
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 9.1
L (mm) - 28.4
Overall Width (M) mm - 60.5
N (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
M - Metric

** Images are for representation purposes only
