125702 DODGE - F4B-VSC-55M

Brand - DODGE
Item Number - 125702 DODGE - F4B-VSC-55M
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 4-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - F4B-VSC-55M
Description (No-Lube/Sealed for Life) - F4B-VSC-55M-NL
Weight (kg) - 4.12

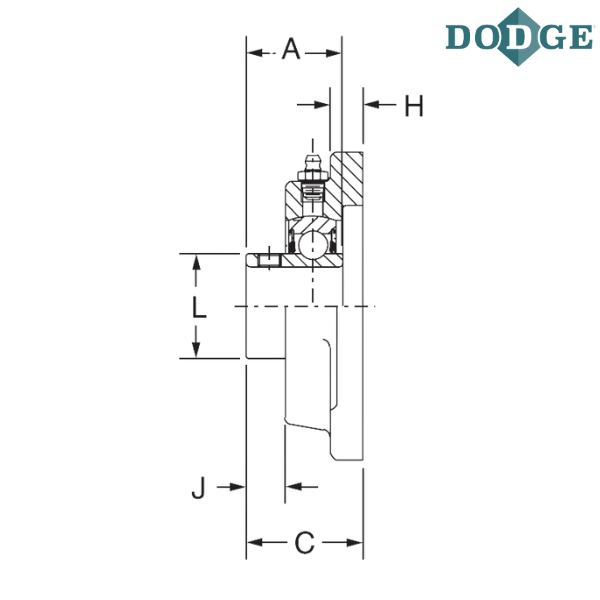

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 165.1
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 130.3
F-Bolt Diameter - M16
H (mm) - 17.5
J (mm) - 17.3
L (mm) - 68.8
N (mm) - 82.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
M - Metric

** Images are for representation purposes only
