125684 DODGE - F2B-SXR-50M

Brand - DODGE
Item Number - 125684 DODGE - F2B-SXR-50M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F2B-SXR-50M
Description (No Lube/Sealed for Life) - F2B-SXR-50M-NL
Description (With Flingers) - F2B-SXR-50M-FF
Weight (kg) - 2.6

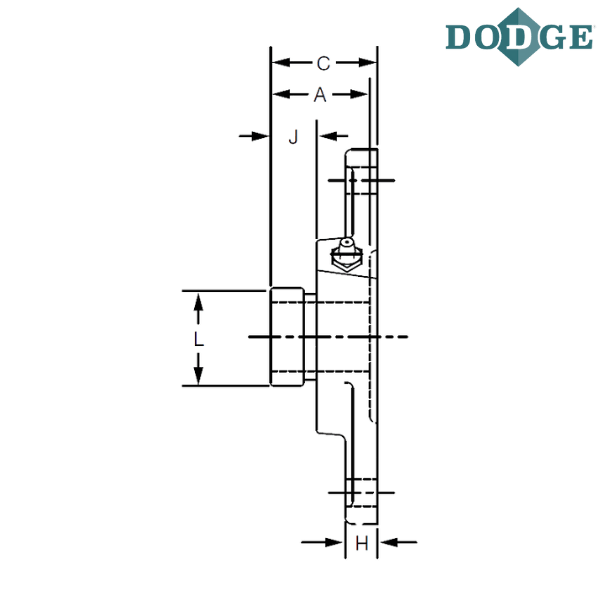

Length Through Bore (A) mm - 57.2
Overall Length (B) mm - 189
Thickness (C) mm - 59.2
Bolt Center to Center Length (D) mm - 157.2
F-Bolt Diameter - M16
H (mm) - 16
J (mm) - 21.8
L (mm) - 69.9
Overall Width (M) mm - 115.8
N (mm) - 51.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

** Images are for representation purposes only
