Description
Brand - DODGE
Item Number - 125676 DODGE - F4B-SXR-75M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 215
Shaft Size (mm) - 75
Description - F4B-SXR-75M
Description (With Flingers) - F4B-SXR-75M-FF
Weight (kg) - 8.2

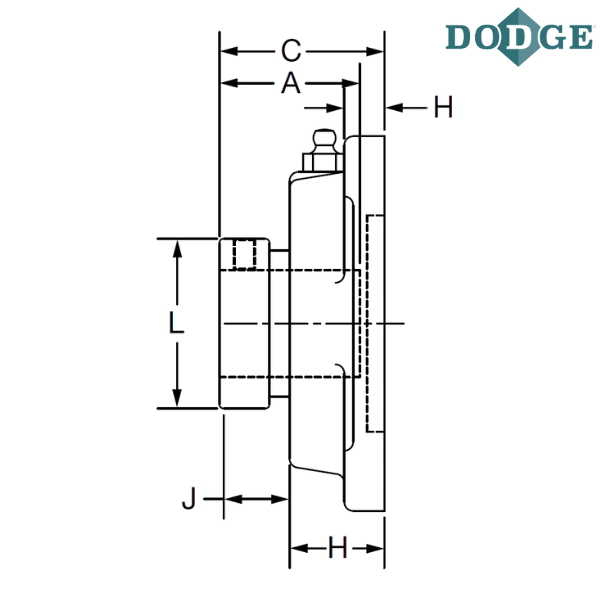

Length Through Bore (A) mm - 76.7
Overall Length (B) mm - 196.9
Thickness (C) mm - 90.9
Bolt Center to Center Length (D) mm - 152.4
F-Bolt Diameter - M18
H (mm) - 25.4
J (mm) - 33.8
L (mm) - 101.6
N (mm) - 98.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
