Description
Brand - DODGE
Item Number - 125671 DODGE - F4B-SXR-40M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F4B-SXR-40M
Description (With Flingers) - F4B-SXR-40M-FF
Weight (kg) - 2.3

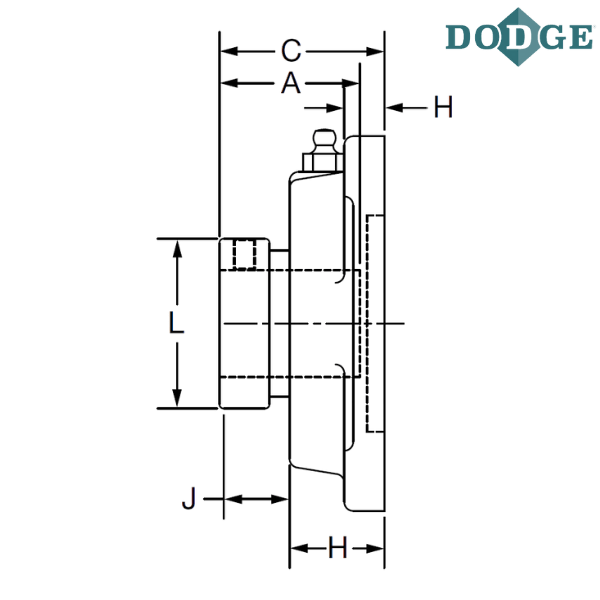

Length Through Bore (A) mm - 53.8
Overall Length (B) mm - 130.3
Thickness (C) mm - 54.6
Bolt Center to Center Length (D) mm - 101.6
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 20.6
L (mm) - 60.5
N (mm) - 60.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
