Description
Brand - DODGE
Item Number - 125670 DODGE - F4B-SXR-35M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F4B-SXR-35M
Description (With Flingers) - F4B-SXR-35M-FF
Weight (kg) - 1.8

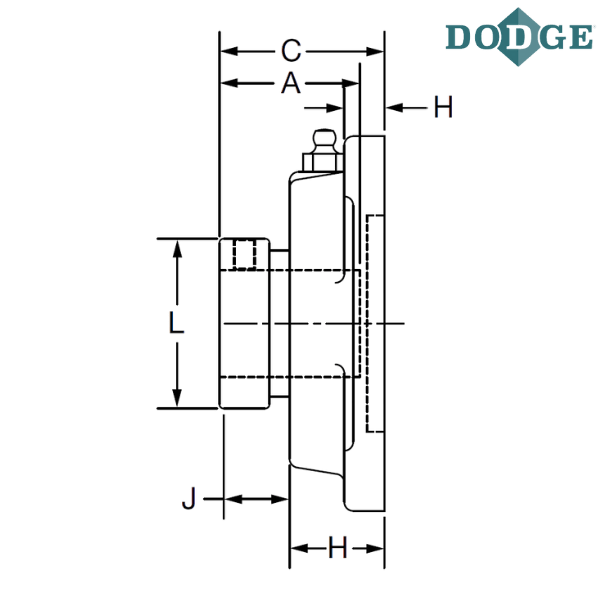

Length Through Bore (A) mm - 49.5
Overall Length (B) mm - 120.7
Thickness (C) mm - 50.5
Bolt Center to Center Length (D) mm - 92.1
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 19.6
L (mm) - 54.1
N (mm) - 62
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
