Description
Brand - DODGE
Item Number - 125669 DODGE - F4B-SXR-30M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F4B-SXR-30M
Description (With Flingers) - F4B-SXR-30M-FF
Weight (kg) - 1.3

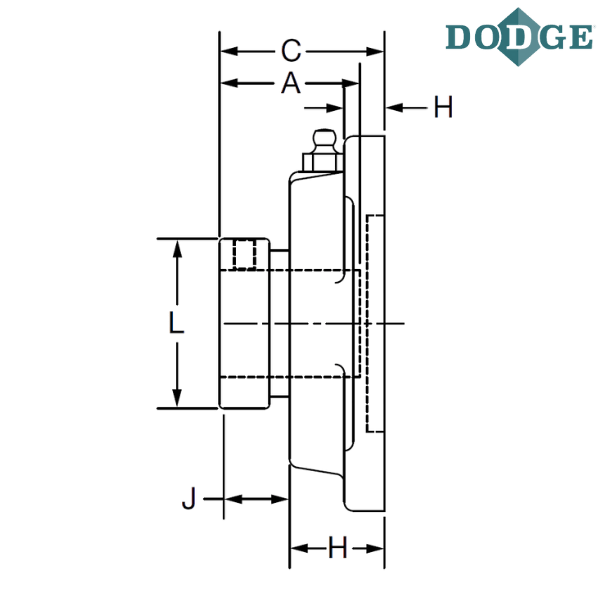

Length Through Bore (A) mm - 45
Overall Length (B) mm - 108
Thickness (C) mm - 46
Bolt Center to Center Length (D) mm - 82.6
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 18.8
L (mm) - 44.5
N (mm) - 55.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric
** Images are for representation purposes only
