125668 DODGE - F4B-SXR-25M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125668 DODGE - F4B-SXR-25M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-SXR-25M
Description (With Flingers) - F4B-SXR-25M-FF
Weight (kg) - 0.9

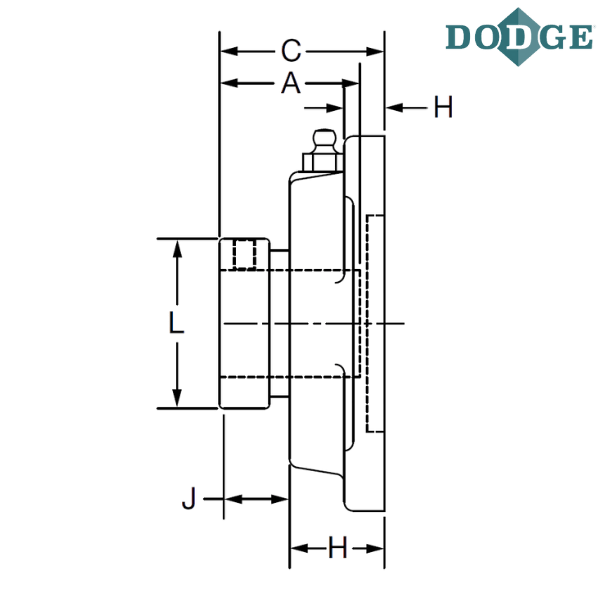

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 95.3
Thickness (C) mm - 41.9
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 17.8
L (mm) - 38.1
N (mm) - 52.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

** Images are for representation purposes only
