125666 DODGE - F4B-SXR-17M


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125666 DODGE - F4B-SXR-17M
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 203
Shaft Size (mm) - 17
Description - F4B-SXR-17M
Description (With Flingers) - F4B-SXR-17M-FF
Weight (kg) - 0.5

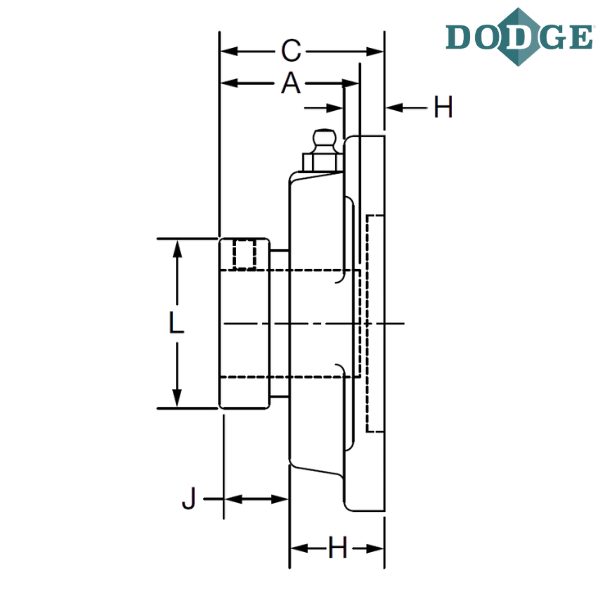

Length Through Bore (A) mm - 37.3
Overall Length (B) mm - 76.2
Thickness (C) mm - 36.8
Bolt Center to Center Length (D) mm - 54
F-Bolt Diameter - M10
H (mm) - 11.2
J (mm) - 15.5
L (mm) - 28.7
N (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
M - Metric

** Images are for representation purposes only
