Description
Brand - DODGE
Item Number - 125665 DODGE - P2B-SXRU-75M
Category - Eccentric Collar Ball Bearings (SXR and SXRU Normal Duty Pillow Blocks)
Series - 215 (SXRU)
Shaft Size (mm) - 75
Description - P2B-SXRU-75M
Description (Sealed for Life) - P2B-SXRU-75M-NL
Weight (kg) - 9.3

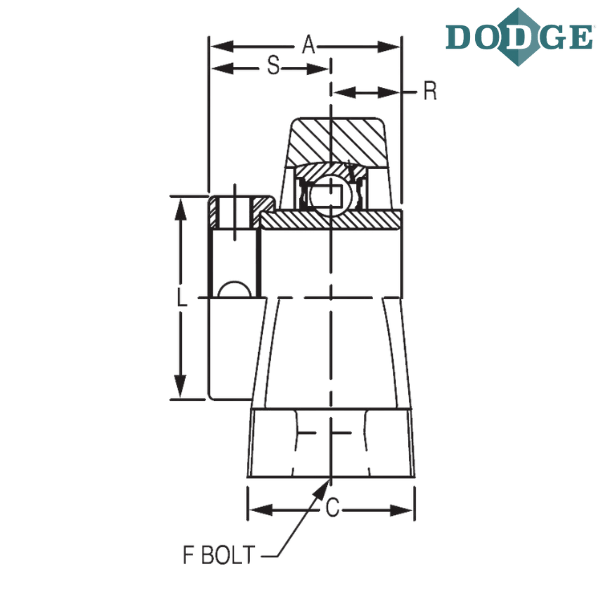

Length Through Bore (A) mm - 76.7
Overall Length (B) mm - 298.5
Width (C) mm - 73.2
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter - M22

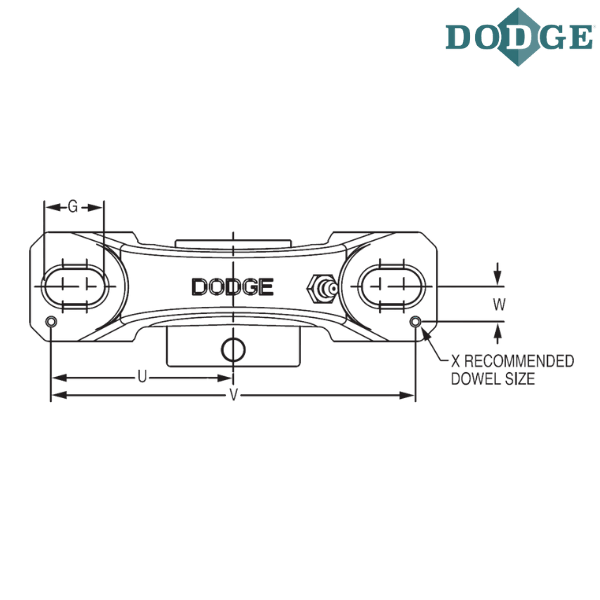

G (mm) - 36.6
H (mm) - 25.4
Overall Height (J) mm - 165.1
L (mm) - 101.6
M (mm) - 82.6
R (mm) - 21.8
S (mm) - 54.9
U (mm) - 139.2
V (mm) - 278.4
W (mm) - 26.4
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
U - Higher back pillow block
M - Metric
** Images are for representation purposes only
