125559 DODGE - WSTU-VSC-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125559 DODGE - WSTU-VSC-108
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty Wide Slot Take-Up Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - WSTU-VSC-108
Weight (lbs) - 6.1
Take-Up Frame Number Reference - WS400

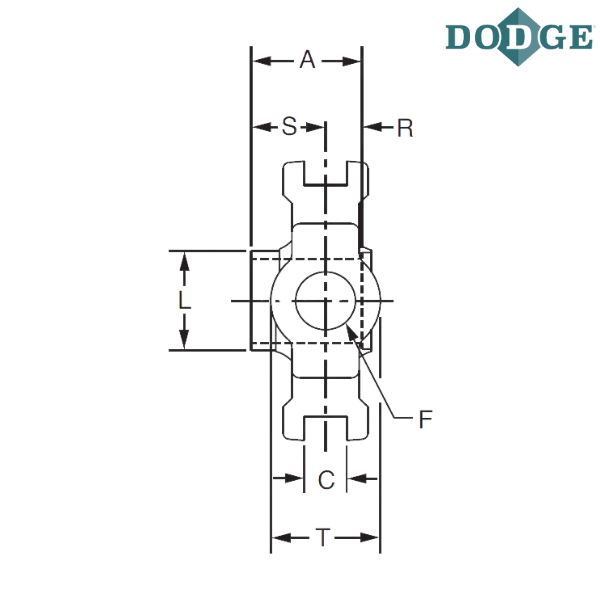

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.69
C (inch) - 0.688
D (inch) - 3.25
E (inch) - 3.5
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.05
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.5
R (inch) - 0.75
S (inch) - 1.19
T (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up

** Images are for representation purposes only
