Description
Brand - DODGE
Item Number - 125518 DODGE - F2B-VSC-014
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - F2B-VSC-014
Description (No-Lube/Sealed for Life) - F2B-VSC-014-NL
Weight (lbs) - 1.6

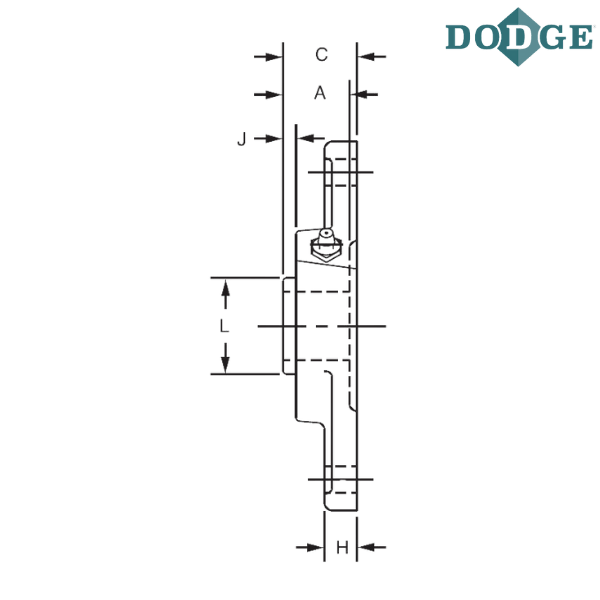

Length Through Bore (A) inch - 1.34
Overall Length (B) inch - 4.88
Thickness (C) inch - 1.37
Bolt Center to Center Length (D) inch - 3.89
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.52
J (inch) - 0.42
L (inch) - 1.32
Overall Width (M) inch - 2.75
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
** Images are for representation purposes only
