125371 DODGE - NSTU-SC-112


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125371 DODGE - NSTU-SC-112
Category - Setscrew Ball Bearings (SC Normal Duty Narrow Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.75
Description - NSTU-SC-112
Part Number (No Lube, Sealed for Life) - 068184
Description (No Lube, Sealed for Life) - NSTU-SC-112-NL
Weight (lbs) - 4.7
Take-Up Frame Number Reference - NS400

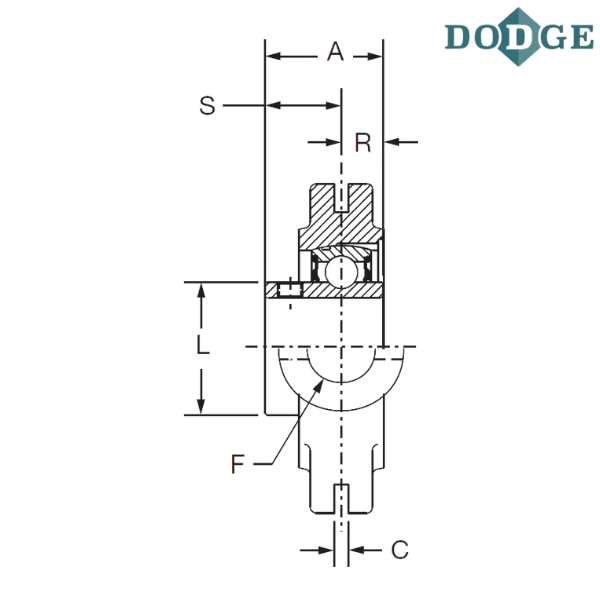

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.44
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F-Bolt Diameter (inch) - 0.875
G (inch) - 0.72
H (inch) - 1.22
J (inch) - 1.63
L (inch) - 2.22
M (inch) - 4.015/3.985
Overall Width (N) inch - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.75
S (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
