125151 DODGE - WSTU-SC-110L


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 125151 DODGE - WSTU-SC-110L
Category - Setscrew Ball Bearings (SC Normal Duty Wide Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - WSTU-SC-110L
Description (No Lube, Sealed for Life) - WSTU-SC-110L-NL
Weight (lbs) - 6.1
Take-Up Frame Size - WS400

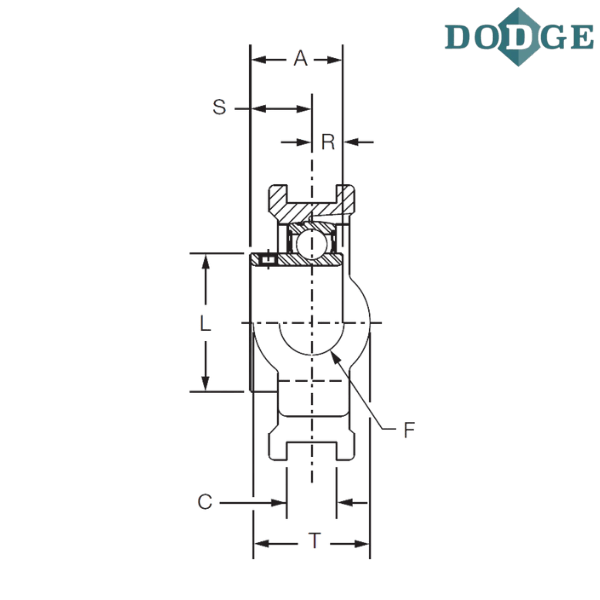

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.63
C (inch) - 0.688
D (inch) - 3.25
E (inch) - 3.44
F (Screw Diameter) inch - 1
G (inch) - 0.63
H (inch) - 0.75
J (inch) - 3.25
K (inch) - 1.94
L (inch) - 2.22
M (inch) - 3.985/4.015
Overall Width (N) inch - 4.75
R (inch) - 0.75
S (inch) - 1.19
T (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking
L - Next larger ring size

** Images are for representation purposes only
