124677 DODGE - LFT-SXV-100


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 124677 DODGE - LFT-SXV-100
Category - Eccentric Collar Ball Bearings (SXV LFT Intermediate Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - LFT-SXV-100
Part Number (No-Lube/Sealed for Life) - 124697
Description (No-Lube/Sealed for Life) - LFT-SXV-100-NL
Weight (lbs) - 0.86

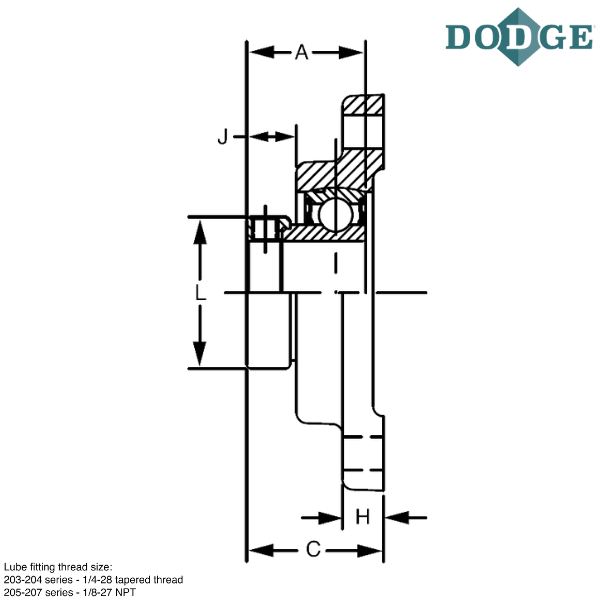

Length Through Bore (A) inch - 1.22
Overall Length (B) inch - 3.75
Thickness (C) inch - 1.4
Bolt Center to Center Length (D) inch - 3
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.53
L (inch) - 1.31
M (inch) - 2.63
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2 bolt light duty flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

** Images are for representation purposes only
