124642 DODGE - LFT-SC-012


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 124642 DODGE - LFT-SC-012
Category - Setscrew Ball Bearings (SC LFT Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - LFT-SC-012
Part Number (Sealed for Life, No Lube) - 124662
Description (Sealed for Life, No Lube) - LFT-SC-012-NL
Weight (lbs) - 0.8

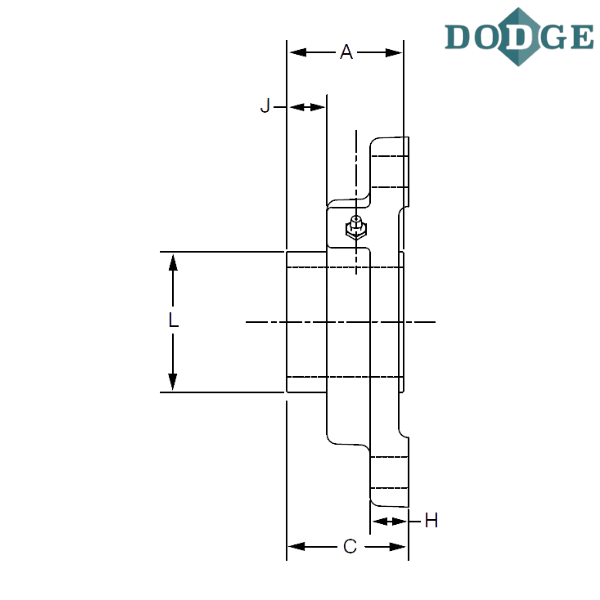

Length Through Bore (A) inch - 1.02
Overall Length (B) inch - 3.56
Thickness (C) inch - 1.21
Bolt Center to Center Length (D) inch - 2.81
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.36
L (inch) - 1.12
Overall Width (M) inch - 2.38
N (inch) - 1.34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
