124641 DODGE - LFT-SC-010


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 124641 DODGE - LFT-SC-010
Category - Setscrew Ball Bearings (SC LFT Duty 2-Bolt Flange Bearings)
Series - 203
Shaft Size (inch) - 0.625
Description - LFT-SC-010
Part Number (Sealed for Life, No Lube) - 124661
Description (Sealed for Life, No Lube) - LFT-SC-010-NL
Weight (lbs) - 0.55

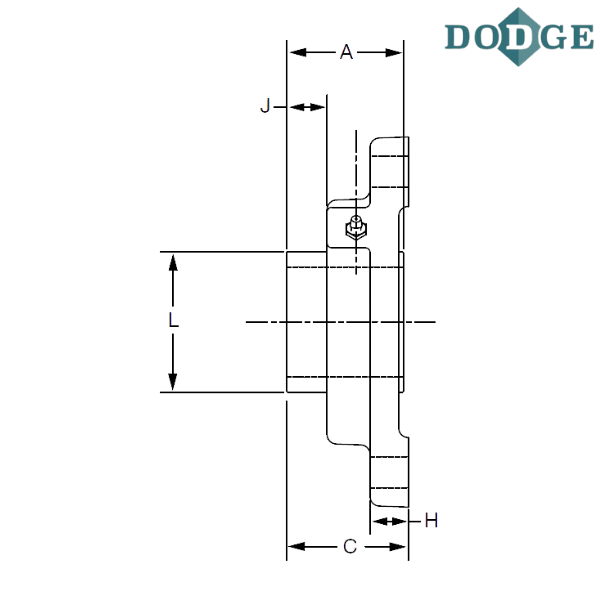

Length Through Bore (A) inch - 1
Overall Length (B) inch - 3.19
Thickness (C) inch - 1.05
Bolt Center to Center Length (D) inch - 2.5
G (inch) - 0.28
H (inch) - 0.38
J (inch) - 0.33
L (inch) - 0.96
Overall Width (M) inch - 2.13
N (inch) - 1.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
