123814 DODGE - P2B-SC-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 123814 DODGE - P2B-SC-108
Category - Setscrew Ball Bearings (SC and SCU Normal Duty Pillow Blocks)
Series - 208
Shaft Size (inch) - 1.5
Description - P2B-SC-108
Part Number (No-Lube/Seal for Life) - 123829
Description (No-Lube/Seal for Life) - P2B-SC-108-NL
Weight (lbs) - 5.4

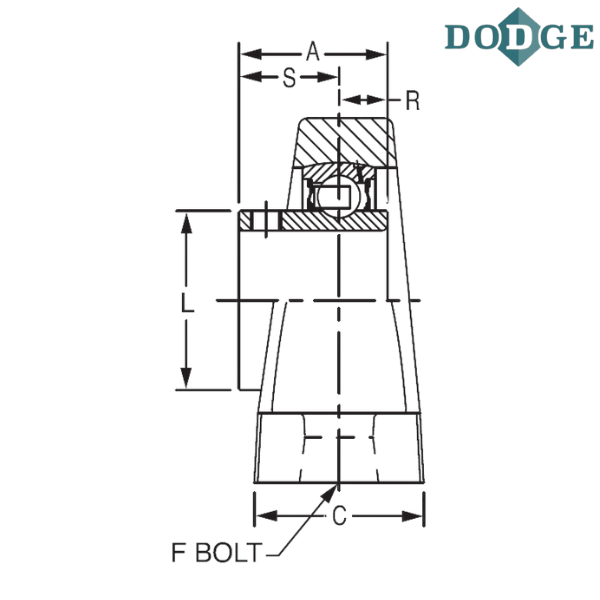

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 7.25
Width (C) inch - 1.93
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.91
H (inch) - 0.93
Overall Height (J) inch - 4.19
L (inch) - 2.05
Base to Center Height (M) inch - 2.13
R (inch) - 0.75
S (inch) - 1.19

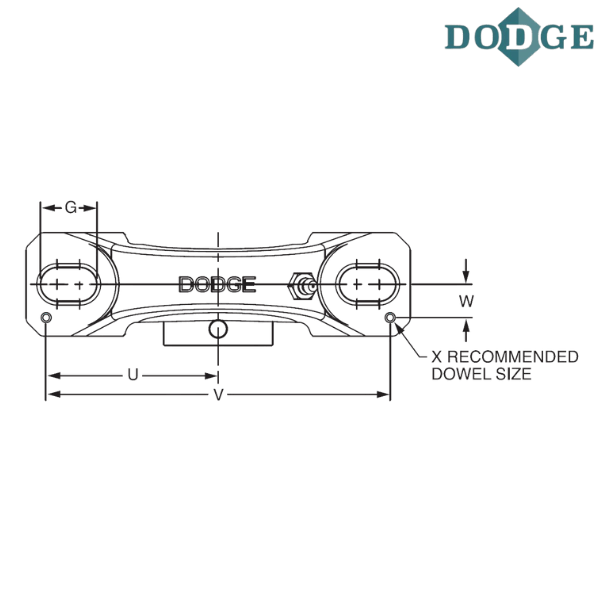

U (inch) - 3.26
V (inch) - 6.52
W (inch) - 0.69
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
