Description
Brand - DODGE
Item Number - 123760 DODGE - F4B-SCMAH-107
Category - Setscrew Ball Bearings (SCMAH Air Handling Medium Duty 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.4375
Description - F4B-SCMAH-107
Weight (lbs) - 5

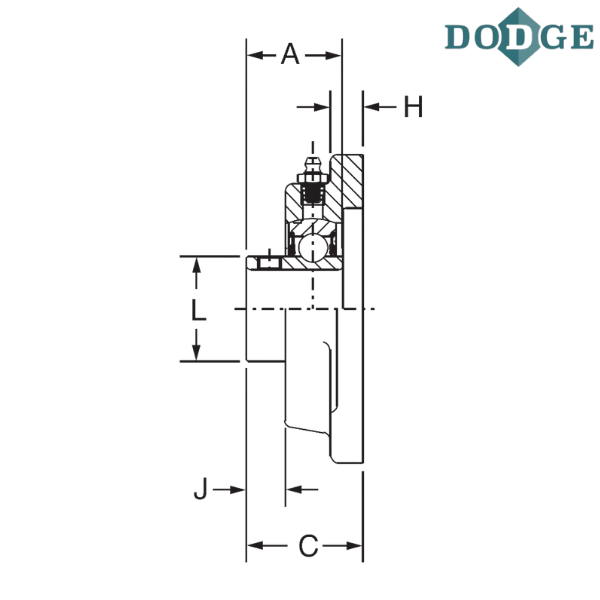

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.13
Thickness (C) inch - 1.98
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.63
L (inch) - 2.05
N (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
AH - Air handling
** Images are for representation purposes only
