Description
Brand - DODGE
Item Number - 123736 DODGE - F2B-SCAH-111
Category - Setscrew Ball Bearings (SCAH Normal Duty Air Handling 2-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.6875
Description - F2B-SCAH-111
Weight (lbs) - 5

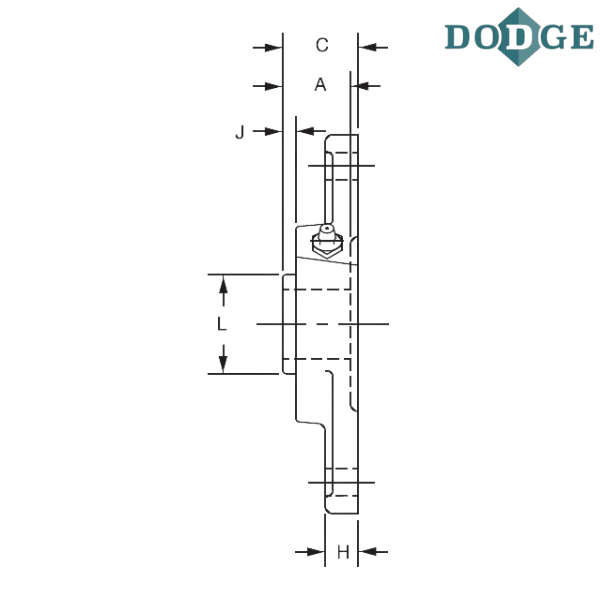

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 7.06
Thickness (C) inch - 1.99
Bolt Center to Center Length (D) inch - 5.84
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.59
L (inch) - 2.22
Overall Width (M) inch - 4.38
N (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
AH - Air handling
** Images are for representation purposes only
