Description
Brand - DODGE
Item Number - 123632 DODGE - F4B-VSC-200
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 4-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - F4B-VSC-200
Part Number (No-Lube/Sealed for Life) - 068716
Description (No-Lube/Sealed for Life) - F4B-VSC-200-NL
Weight (lbs) - 6

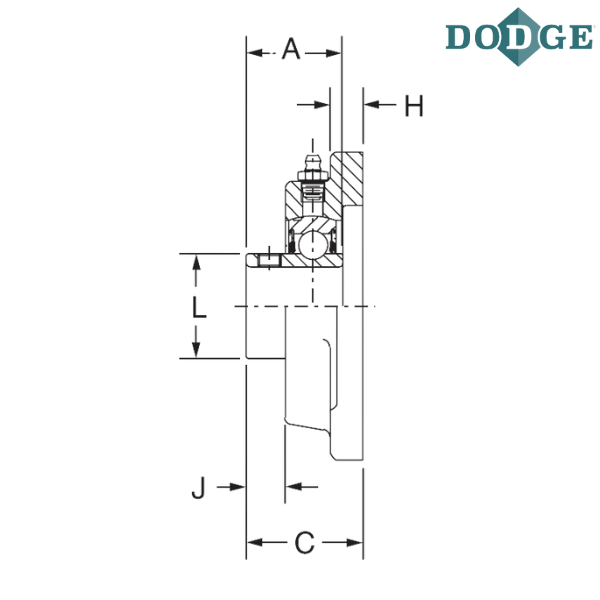

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.63
Thickness (C) inch - 2.02
Bolt Center to Center Length (D) inch - 4.38
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.55
L (inch) - 2.43
N (inch) - 2.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
** Images are for representation purposes only
