123631 DODGE - F4B-VSC-115


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 123631 DODGE - F4B-VSC-115
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 4-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - F4B-VSC-115
Description (No-Lube/Sealed for Life) - F4B-VSC-115-NL
Weight (lbs) - 6.25

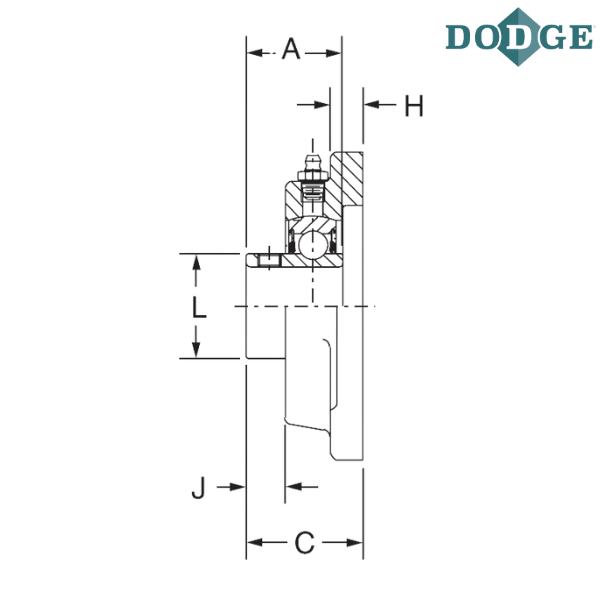

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.63
Thickness (C) inch - 2.02
Bolt Center to Center Length (D) inch - 4.38
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.55
L (inch) - 2.43
N (inch) - 2.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange

** Images are for representation purposes only
