Description
Brand - DODGE
Item Number - 123616 DODGE - F2B-VSC-115
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - F2B-VSC-115
Part Number (No-Lube/Sealed for Life) - 059811
Description (No-Lube/Sealed for Life) - F2B-VSC-115-NL
Weight (lbs) - 5.4

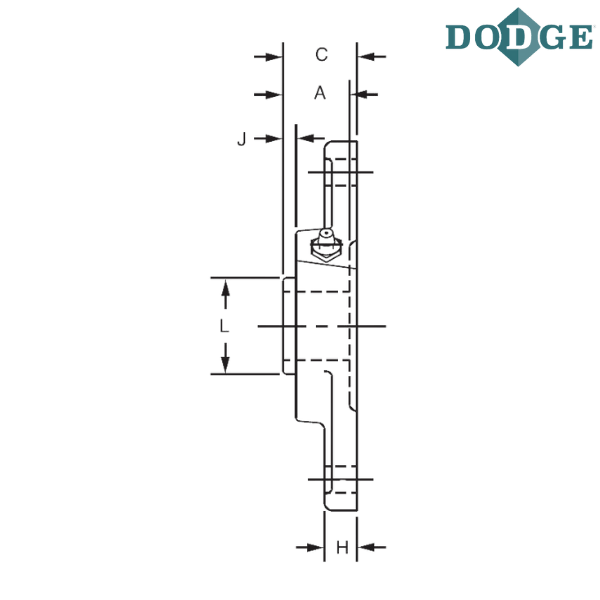

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 7.44
Thickness (C) inch - 2.02
Bolt Center to Center Length (D) inch - 6.19
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.55
L (inch) - 2.43
Overall Width (M) inch - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
** Images are for representation purposes only
