123610 DODGE - F2B-VSC-012


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 123610 DODGE - F2B-VSC-012
Category - Setscrew VSC Ball Bearings (VSC Intermediate Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - F2B-VSC-012
Part Number (No-Lube/Sealed for Life) - 057854
Description (No-Lube/Sealed for Life) - F2B-VSC-012-NL
Weight (lbs) - 1.4

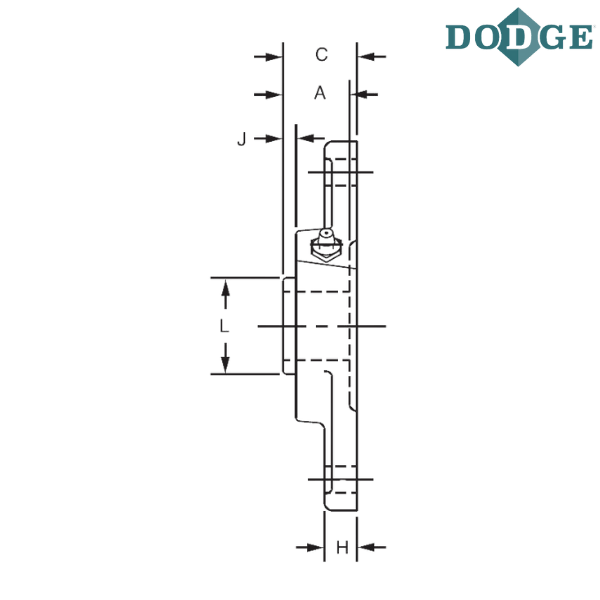

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 4.41
Thickness (C) inch - 1.34
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.5
J (inch) - 0.36
L (inch) - 1.12
Overall Width (M) inch - 2.38
N (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange

** Images are for representation purposes only
