123604 DODGE - P2B-VSCU-103


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 123604 DODGE - P2B-VSCU-103
Category - Setscrew VSC Ball Bearings (VSC and VSCU Intermediate Duty Pillow Blocks)
Series - 206 (VSCU)
Shaft Size (inch) - 1.1875
Description - P2B-VSCU-103
Part Number (No-Lube/Sealed for Life) - 050845
Description (No-Lube/Sealed for Life) - P2B-VSCU-103-NL
Weight (lbs) - 2.7

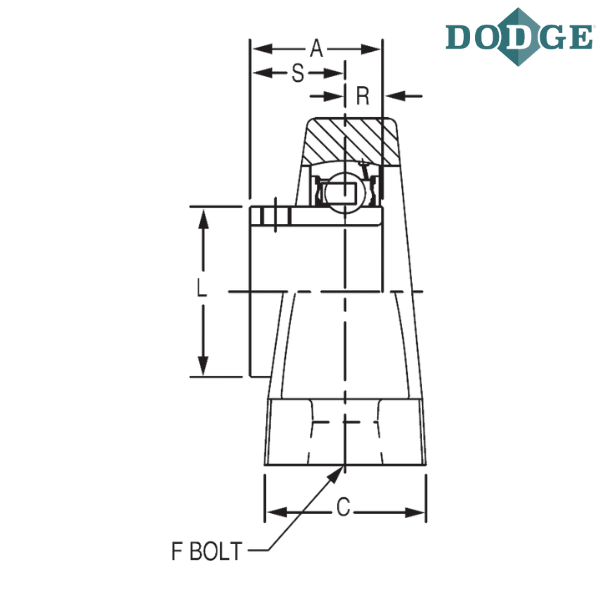

Length Through Bore (A) inch - 1.296875
Overall Length (B) inch - 6.25
Width (C) inch - 1.734375
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.9375
H (inch) - 0.75
Overall Height (J) inch - 3.3125
L (inch) - 1.578125
Base to Center Height (M) inch - 1.6875
R (inch) - 0.390625
S (inch) - 0.90625

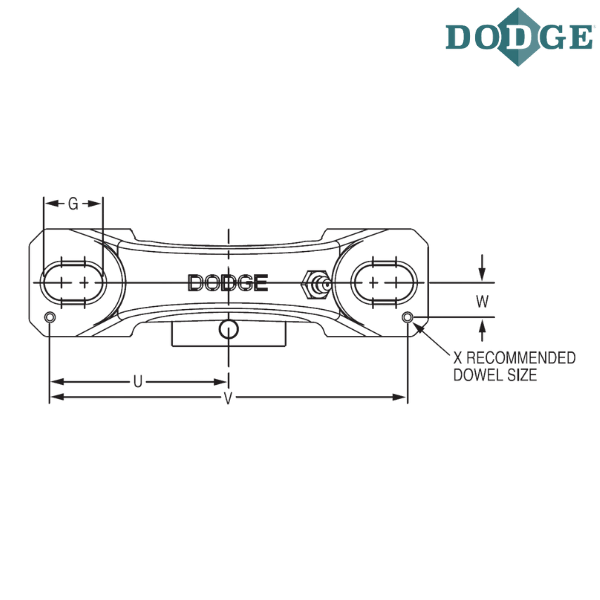

U (inch) - 2.875
V (inch) - 5.75
W (inch) - 0.0552147239263803
X (inch) - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block

** Images are for representation purposes only
