Description
Brand - DODGE
Item Number - 123174 DODGE - NSTU-SC-104S
Category - Setscrew Ball Bearings (SC Normal Duty Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - NSTU-SC-104S
Description (No Lube, Sealed for Life) - NSTU-SC-104S-NL
Weight (lbs) - 2.6
Take-Up Frame Number Reference - NS308

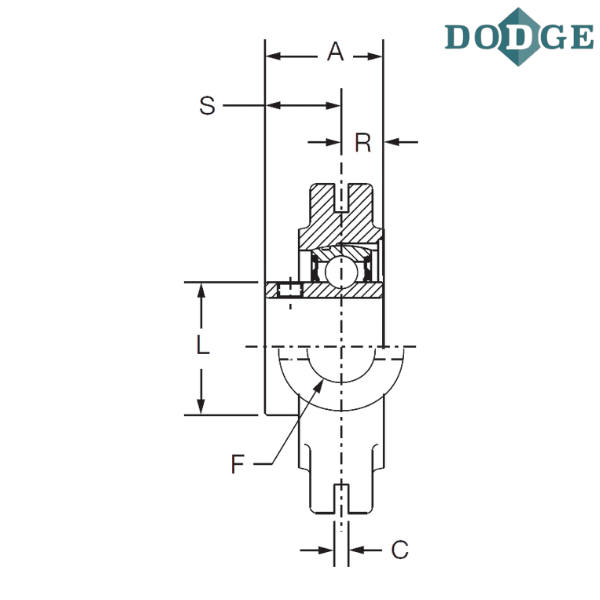

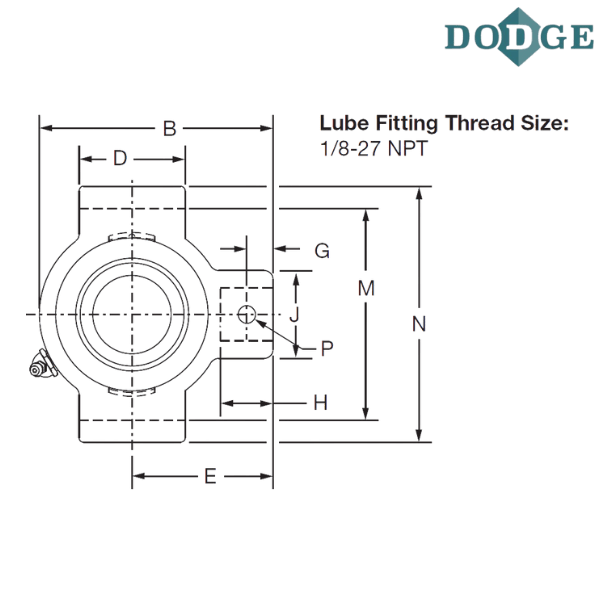

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 4.31
C (inch) - 0.25
D (inch) - 2.5
E (inch) - 2.69
F-Bolt Diameter (inch) - 0.75
G (inch) - 0.5
H (inch) - 0.94
J (inch) - 1.38
L (inch) - 1.57
M (inch) - 3.510/3.480
Overall Width (N) inch - 4.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.58
S (inch) - 0.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking
S - Next smaller ring size

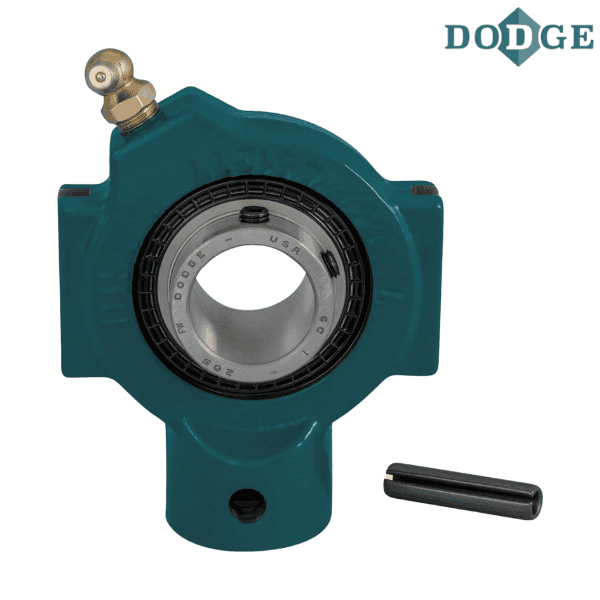

** Images are for representation purposes only
