Description

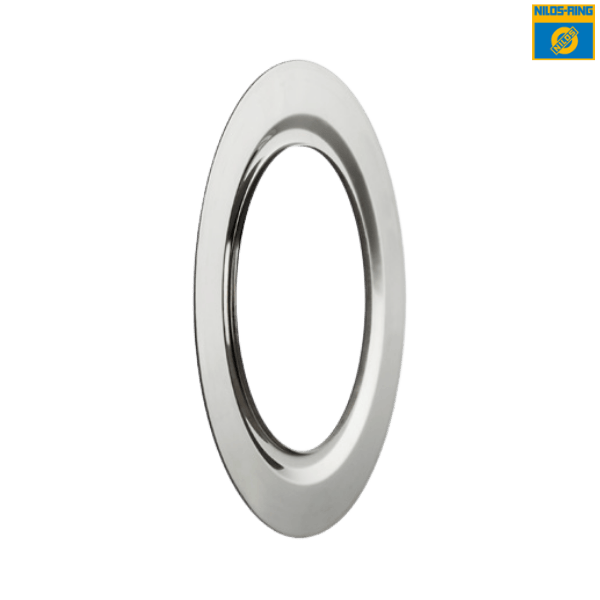

Brand - NILOS
Item Number - 1219 JV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing

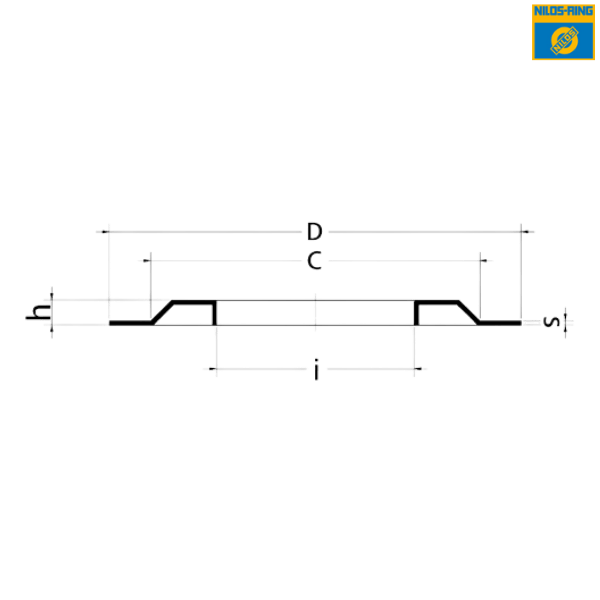

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 110 mm
Dimension (c) - 137 mm
Outer Diamter (D) - 170 mm
Width (h) - 3.5 mm
Material Thickness (s) - 0.5 mm

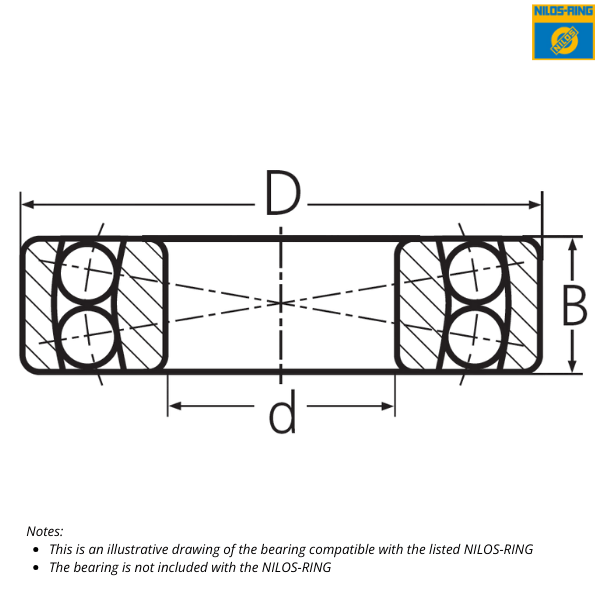

Description of Compatible Bearing (12 Series) :
Bearing Part Number - 1219
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 170 mm
Width (B) - 32 mm
♦ ♦ Images are for representation purposes only
