Description
Brand - ZEN
Item Number - 11308 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 40
D2 (mm) - 90
Bi (mm) - 58
Width (B) mm - 23
D1 (mm) - 82
d1 (mm) - 57.7
r (mm) - 1.5
Dynamic Load Rating (N) - 28900
Static Load Rating (N) - 9500
Limiting Speed - 6800
Weight (kg) - 1.100
Radial Play - 0.006-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

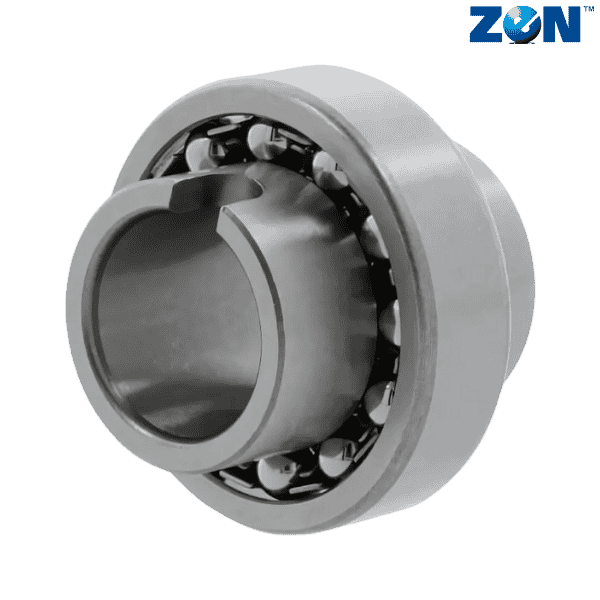

** Images are for representation purposes only
