Description
Brand - ZEN
Item Number - 11306 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 30
D2 (mm) - 72
Bi (mm) - 52
Width (B) mm - 19
D1 (mm) - 65.5
d1 (mm) - 45
r (mm) - 1.1
Dynamic Load Rating (N) - 21000
Static Load Rating (N) - 6000
Limiting Speed - 8500
Weight (kg) - 0.620
Radial Play - 0.005-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

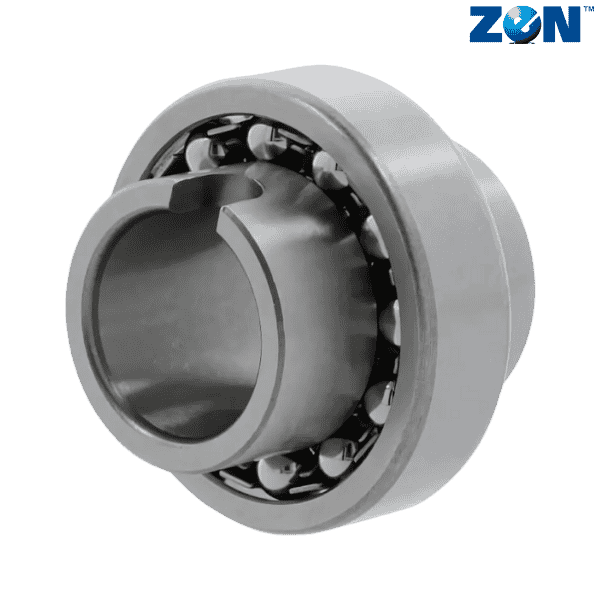

** Images are for representation purposes only
