Description
Brand - ZEN
Item Number - 11211 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 55
D2 (mm) - 100
Bi (mm) - 60
Width (B) mm - 21
D1 (mm) - 86.4
d1 (mm) - 69.5
r (mm) - 1.5
Dynamic Load Rating (N) - 25650
Static Load Rating (N) - 9405
Limiting Speed - 7315
Weight (kg) - 1.170
Radial Play - 0.008-0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

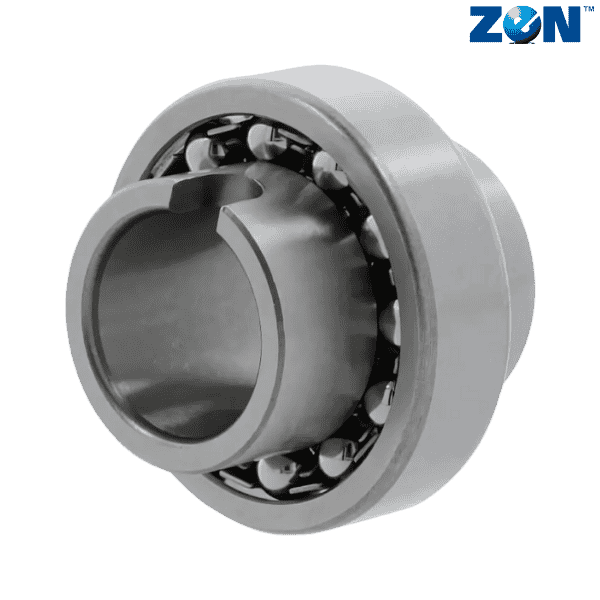

** Images are for representation purposes only
