Description
Brand - ZEN
Item Number - 11210 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 50
D2 (mm) - 90
Bi (mm) - 58
Width (B) mm - 20
D1 (mm) - 77.1
d1 (mm) - 62.7
r (mm) - 1.1
Dynamic Load Rating (N) - 21755
Static Load Rating (N) - 7600
Limiting Speed - 8265
Weight (kg) - 0.850
Radial Play - 0.006-0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

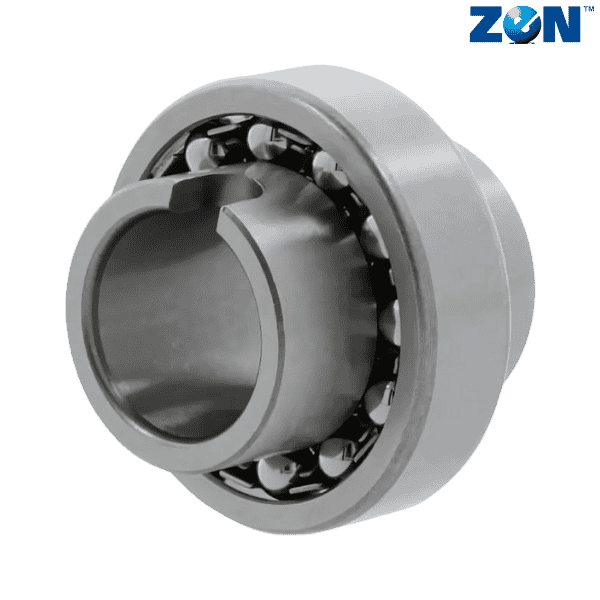

** Images are for representation purposes only
