Description
Brand - ZEN
Item Number - 11209 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 45
D2 (mm) - 85
Bi (mm) - 58
Width (B) mm - 19
D1 (mm) - 72.1
d1 (mm) - 57.7
r (mm) - 1.1
Dynamic Load Rating (N) - 20900
Static Load Rating (N) - 6935
Limiting Speed - 8835
Weight (kg) - 0.770
Radial Play - 0.006-0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

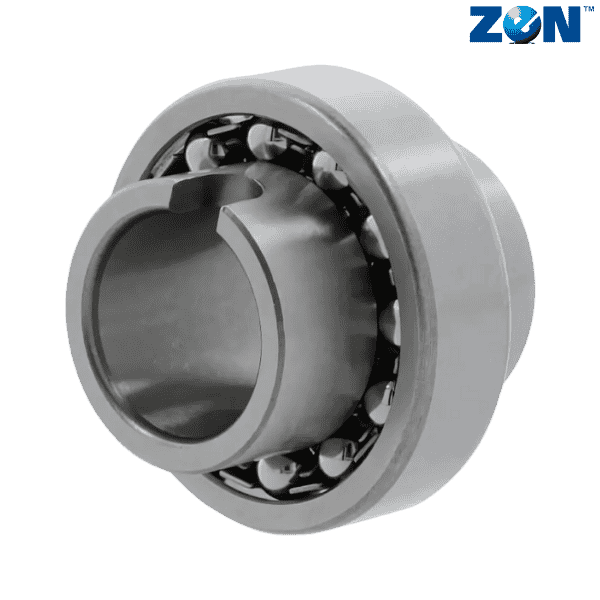

** Images are for representation purposes only
