Description
Brand - ZEN
Item Number - 11208 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 40
D2 (mm) - 80
Bi (mm) - 56
Width (B) mm - 18
D1 (mm) - 67.3
d1 (mm) - 54
r (mm) - 1.1
Dynamic Load Rating (N) - 18430
Static Load Rating (N) - 6175
Limiting Speed - 9595
Weight (kg) - 0.720
Radial Play - 0.006-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

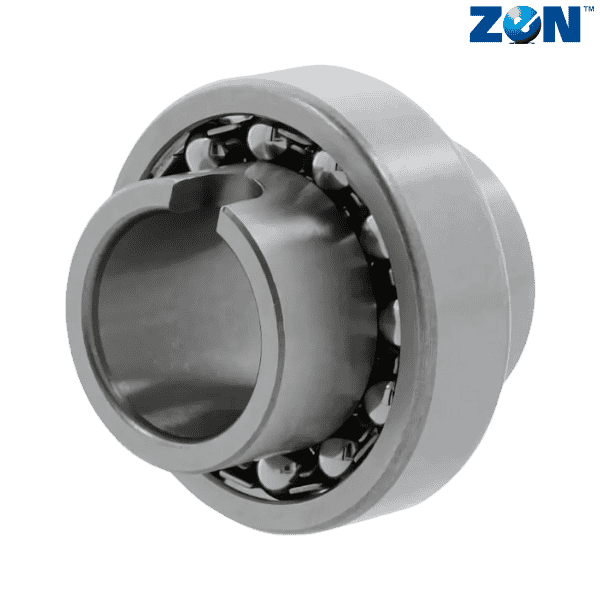

** Images are for representation purposes only
