Description

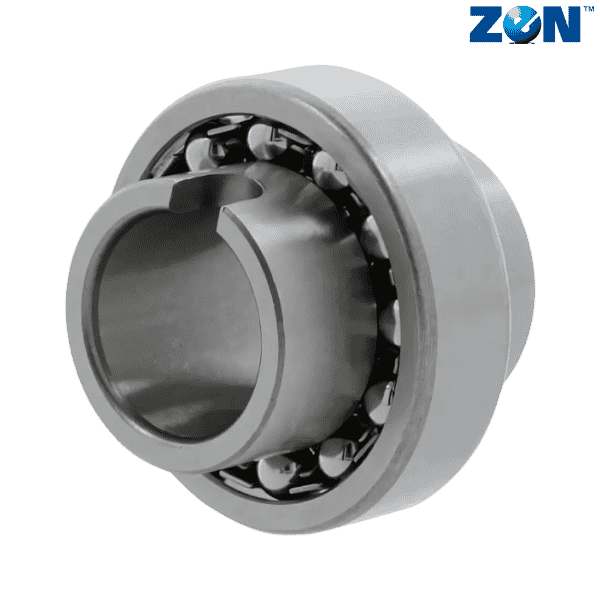

Brand - ZEN
Item Number - 11207 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 35
D2 (mm) - 72
Bi (mm) - 52
Width (B) mm - 17
D1 (mm) - 59.1
d1 (mm) - 47.7
r (mm) - 1.1
Dynamic Load Rating (N) - 15200
Static Load Rating (N) - 4845
Limiting Speed - 11020
Weight (kg) - 0.540
Radial Play - 0.006-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F
** Images are for representation purposes only
