Description
Brand - ZEN
Item Number - 11206 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 30
D2 (mm) - 62
Bi (mm) - 48
Width (B) mm - 16
D1 (mm) - 51.6
d1 (mm) - 40.1
r (mm) - 1
Dynamic Load Rating (N) - 15105
Static Load Rating (N) - 4370
Limiting Speed - 12445
Weight (kg) - 0.350
Radial Play - 0.005-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

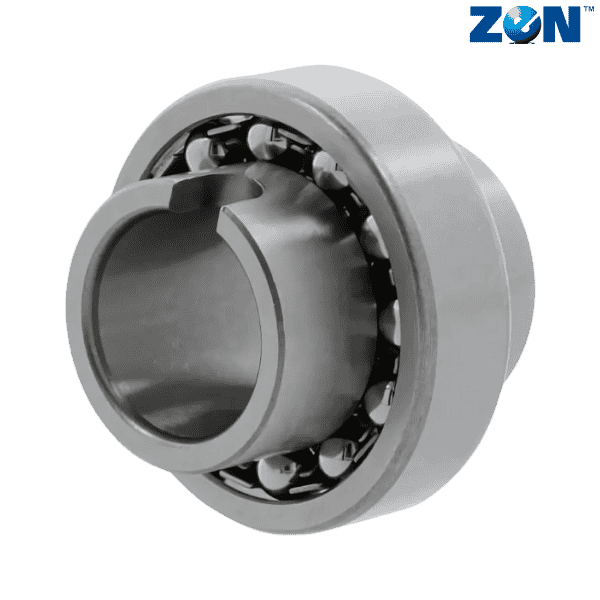

** Images are for representation purposes only
