Description
Brand - ZEN
Item Number - 11204 ZEN
Category - Steel Inserts (11200)
Inner Diameter (d) mm - 20
D2 (mm) - 47
Bi (mm) - 40
Width (B) mm - 14
D1 (mm) - 37.8
d1 (mm) - 29.2
r (mm) - 1
Dynamic Load Rating (N) - 9595
Static Load Rating (N) - 2470
Limiting Speed - 17195
Weight (kg) - 0.186
Radial Play - 0.005-0.020
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Cage Material - 08F

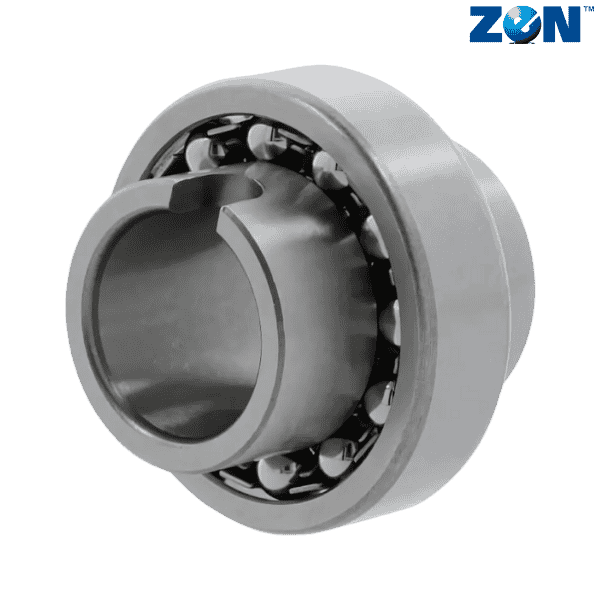

** Images are for representation purposes only
