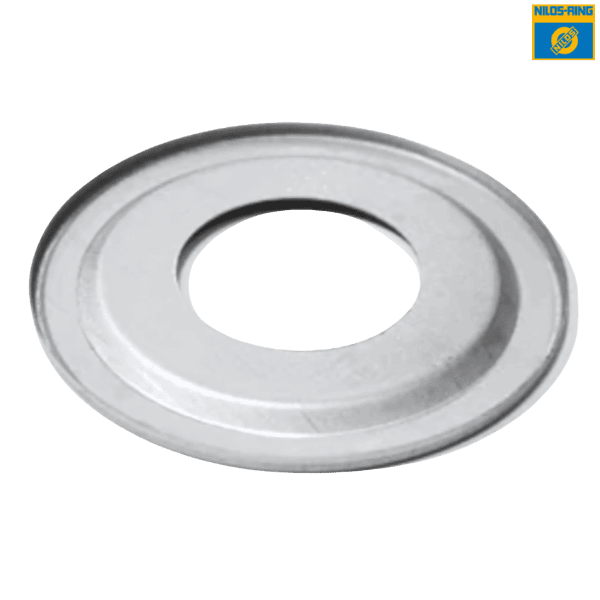

11162/11300 AV NILOS-RING

Brand - NILOS-RING
Item Number - 11162/11300 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

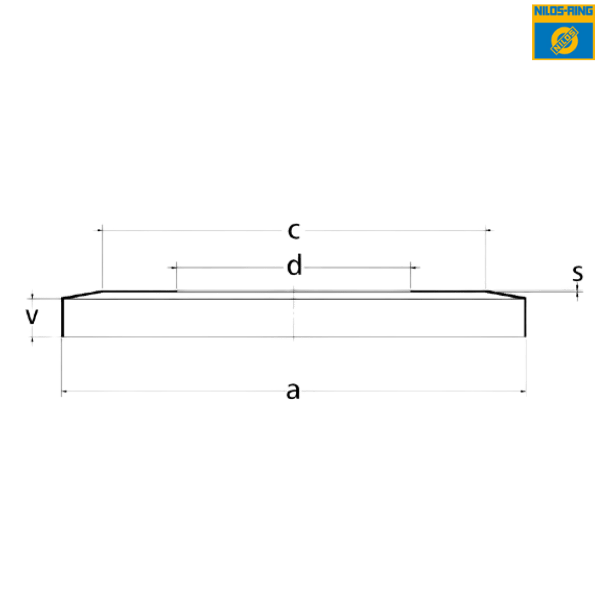

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 74 mm
Dimension (c) - 63 mm
Inner Diameter (d) - 41.28 mm
Thickness (s) - 0.3 mm
Width (v) - 4.2 mm

Principal Dimensions & Load Ratings (Imperial) :
Outer Diameter (a) - 2.9134 inch
Dimension (c) - 2.4803 inch
Inner Diameter (d) - 1.6252 inch
Thickness (s) - 0.0118 inch
Width (v) - 0.1654 inch

♦ ♦ Images are for representation purposes only
