Description
Brand - DODGE
Item Number - 104208 DODGE - F4B-SD-212E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.75
Part Name - F4B-SD-212E
Approximate Weight (lbs) - 86

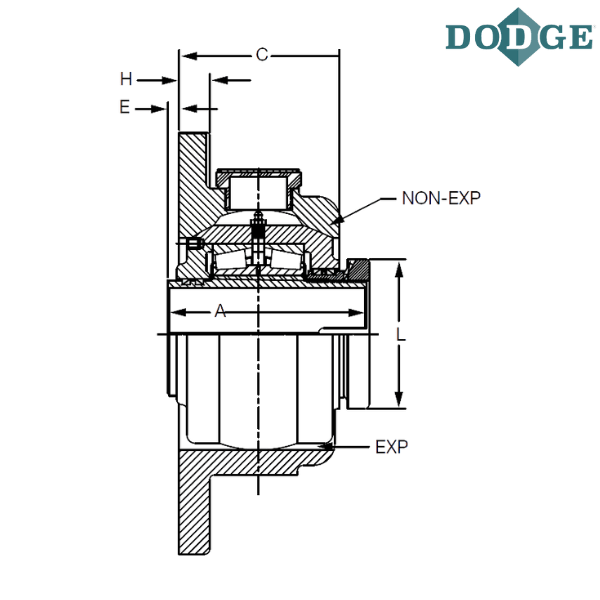

Length Through Bore (A) inch - 5.75
Overall Outer Diameter (B) inch - 13
C (inch) - 4.63
D (inch) - 11.25
E (inch) - 0.31
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
J (inch) - 7.96
L (inch) - 4.44
Exp* (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
