Description
Brand - DODGE
Item Number - 104164 DODGE - F4B-SD-200
Category - Special Duty Flange Bearing - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2
Part Name - F4B-SD-200
Approximate Weight (lbs) - 37

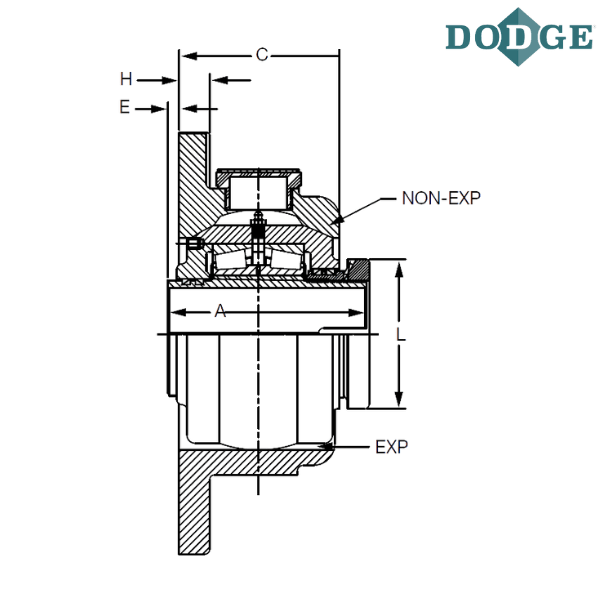

Length Through Bore (A) inch - 4.25
Overall Outer Diameter (B) inch - 10
C (inch) - 3.5
D (inch) - 8.38
E (inch) - 0.19
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.75
J (inch) - 5.92
L (inch) - 3.06
Exp* (inch) - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
