Description
Brand - DODGE
Item Number - 104078 DODGE - F4B-C-112E
Category - Type C Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 1.75
Part Name - F4B-C-112E
Approximate Weight (lbs) - 31

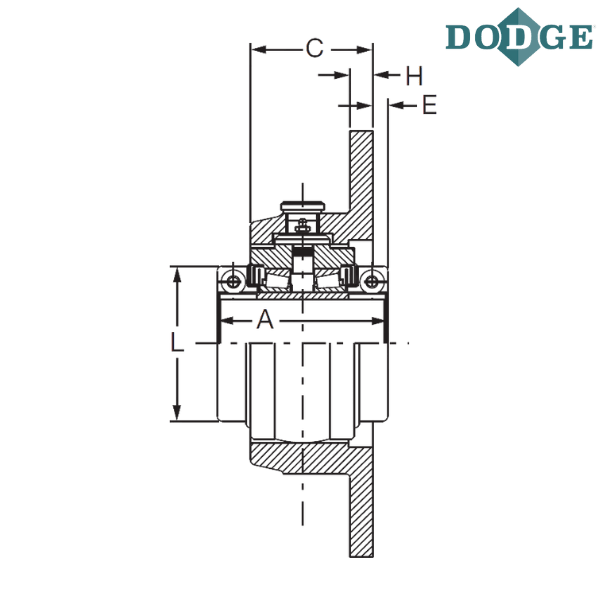

Length Through Bore (A) inch - 4.88
Overall Length (B) inch - 9.00
C (inch) - 3.38
D (inch) - 7.63
E (inch) - 0.75
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.69
J (inch) - 5.39
L ** (inch) - 3.50
Exp * (inch) - 0.25
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
C - Type C
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** A one-piece collar furnished up Thru 2-7/16 sizes.
*** Images are for representation purposes only
