Description
Brand - DODGE
Item Number - 104046 DODGE - F4B-C-307
Category - Type C Flange Bearing - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 3.4375
Part Name - F4B-C-307
Approximate Weight (lbs) - 140

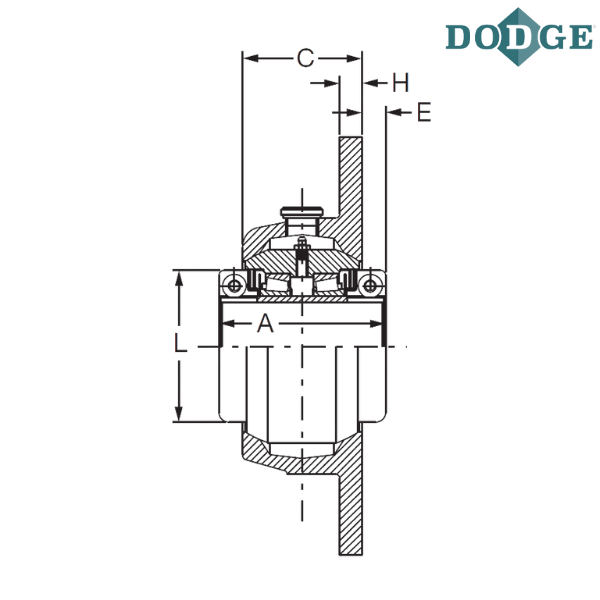

Length Through Bore (A) inch - 7
Overall Length (B) inch - 14.50
C (inch) - 5.375
D (inch) - 12.5
E (inch) - 0.81
F-Bolt Diameter (inch) - 0.875
H (inch) - 1.13
J (inch) - 8.839
L ** (inch) - 5.94
Exp * (inch) - 0.25
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
C - Type C
* Total Expansion for Expansion Bearing only
** A one-piece collar furnished up Thru 2-7/16 sizes.
*** Images are for representation purposes only
