Description
Brand - DODGE
Item Number - 104043 DODGE - F4B-C-203
Category - Type C Flange Bearing - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 2.1875
Part Name - F4B-C-203
Approximate Weight (lbs) - 49

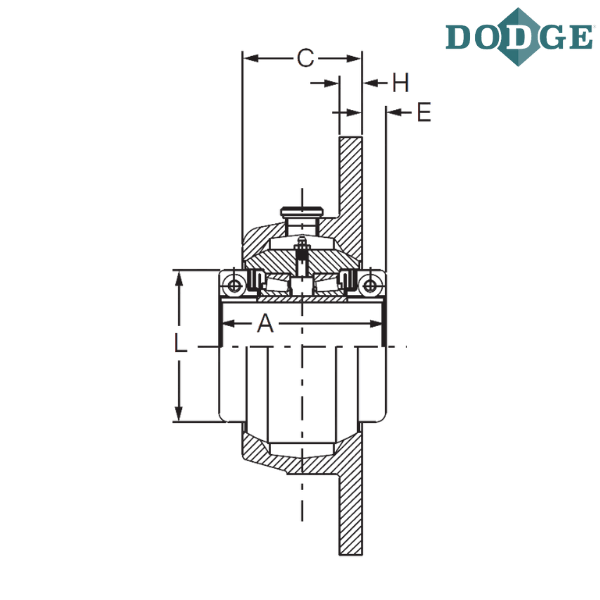

Length Through Bore (A) inch - 5.75
Overall Length (B) inch - 10.75
C (inch) - 4.00
D (inch) - 9.13
E (inch) - 0.88
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.81
J (inch) - 6.45
L ** (inch) - 4.38
Exp * (inch) - 0.25
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
C - Type C
* Total Expansion for Expansion Bearing only
** A one-piece collar furnished up Thru 2-7/16 sizes.
*** Images are for representation purposes only
