Description
Brand - DODGE
Item Number - 104040 DODGE - F4B-C-107
Category - Type C Flange Bearing - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 1.4375
Part Name - F4B-C-107
Approximate Weight (lbs) - 21

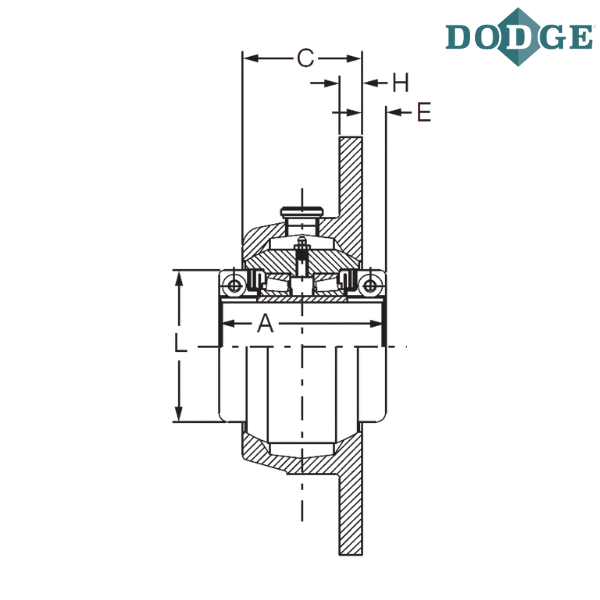

Length Through Bore (A) inch - 4.50
Overall Length (B) inch - 8.25
C (inch) - 3.00
D (inch) - 7.00
E (inch) - 0.75
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 4.95
L ** (inch) - 3.09
Exp * (inch) - 0.1875
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
C - Type C
* Total Expansion for Expansion Bearing only
** A one-piece collar furnished up Thru 2-7/16 sizes.
*** Images are for representation purposes only
