Description
Brand - DODGE
Item Number - 104038 DODGE - F4B-SD-407E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 4.4375
Part Name - F4B-SD-407E
Approximate Weight (lbs) - 325

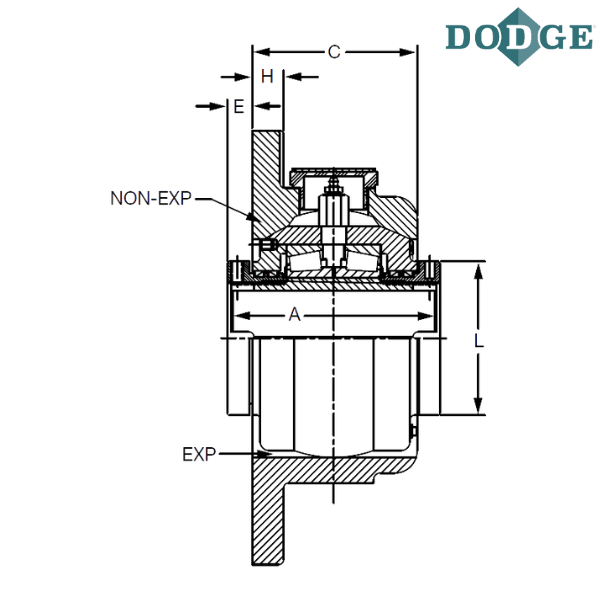

Length Through Bore (A) inch - 9.5
Overall Outer Diameter (B) inch - 19.5
C (inch) - 7.25
D (inch) - 17
E (inch) - 1.13
F-Bolt Diameter (inch) - 1.125
H (inch) - 1.38
J (inch) - 12.02
L (inch) - 7.25
Exp* (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
