Description
Brand - DODGE
Item Number - 104037 DODGE - F4B-SD-315E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 3.9375
Part Name - F4B-SD-315E
Approximate Weight (lbs) - 234

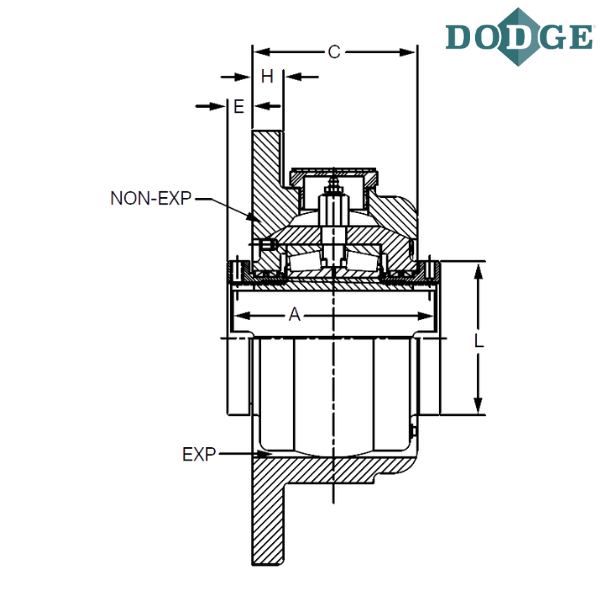

Length Through Bore (A) inch - 8.5
Overall Outer Diameter (B) inch - 18
C (inch) - 6.75
D (inch) - 15.75
E (inch) - 0.88
F-Bolt Diameter (inch) - 1
H (inch) - 1.25
J (inch) - 11.14
L (inch) - 6.25
Exp* (inch) - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
