Description
Brand - DODGE
Item Number - 104033 DODGE - F4B-SD-203E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 2.1875
Part Name - F4B-SD-203E
Approximate Weight (lbs) - 49

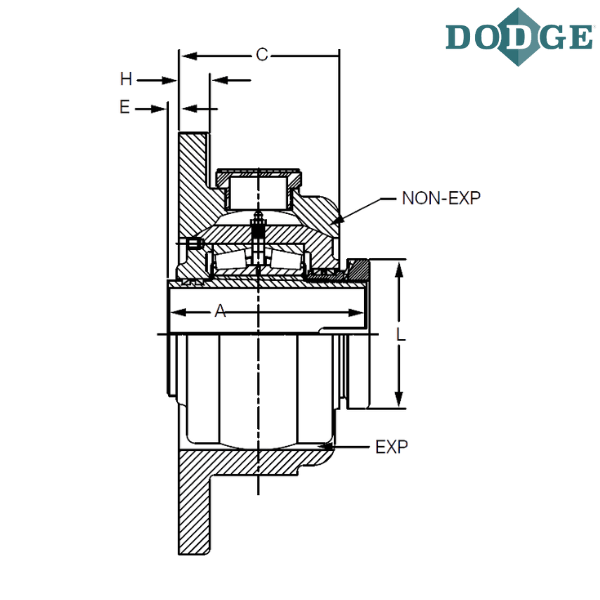

Length Through Bore (A) inch - 4.5
Overall Outer Diameter (B) inch - 10.75
C (inch) - 4
D (inch) - 9.13
E (inch) - 0.06
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.81
J (inch) - 6.45
L (inch) - 3.44
Exp* (inch) - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
