Description
Brand - DODGE
Item Number - 104030 DODGE - F4B-SD-107E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 1.4375
Part Name - F4B-SD-107E
Approximate Weight (lbs) - 22

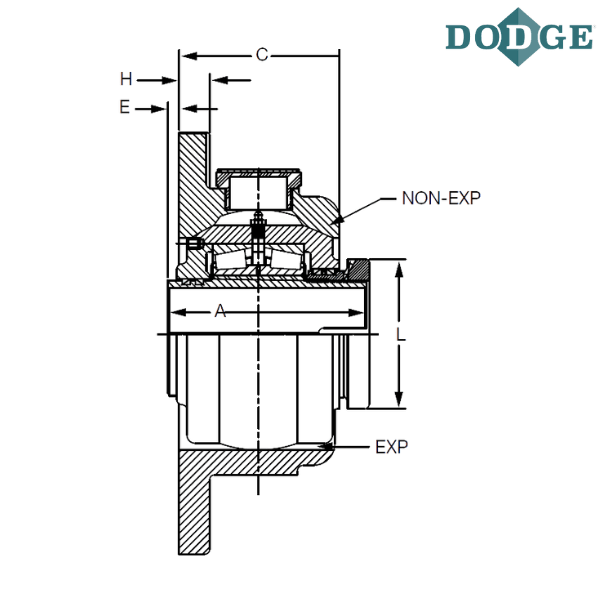

Length Through Bore (A) inch - 4
Overall Outer Diameter (B) inch - 8.25
C (inch) - 3
D (inch) - 7
E (inch) - 0.31
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 4.95
L (inch) - 2.44
Exp* (inch) - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
