Description
Brand - DODGE
Item Number - 104019 DODGE - F4B-SD-600E
Category - Special Duty Flange Bearing - Inch (Gray Iron Expansion)
Shaft Size (inch) - 6
Part Name - F4B-SD-600E
Approximate Weight (lbs) - 560

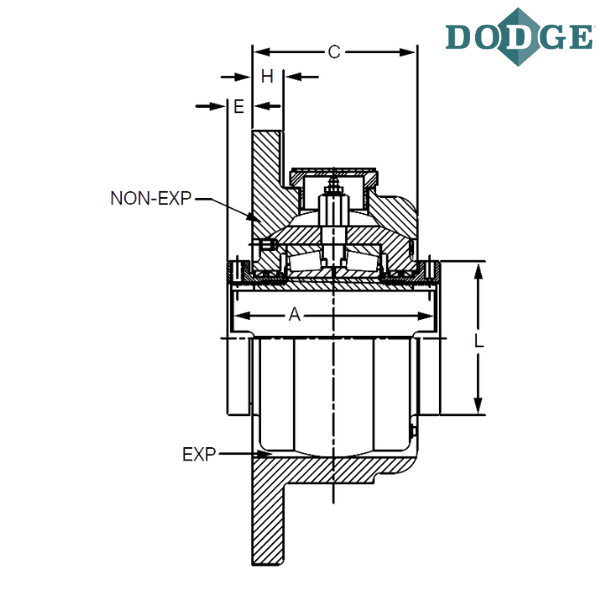

Length Through Bore (A) inch - 12
Overall Outer Diameter (B) inch - 25.5
C (inch) - 9
D (inch) - 22.5
E (inch) - 1.5
F-Bolt Diameter (inch) - 1.25
H (inch) - 1.75
J (inch) - 15.91
L (inch) - 9.5
Exp* (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
E - Expansion Type Bearing
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
