Description
Brand - DODGE
Item Number - 104013 DODGE - F4B-SD-500
Category - Special Duty Flange Bearing - Inch (Gray Iron Non-Expansion)
Shaft Size (inch) - 5
Part Name - F4B-SD-500
Approximate Weight (lbs) - 428

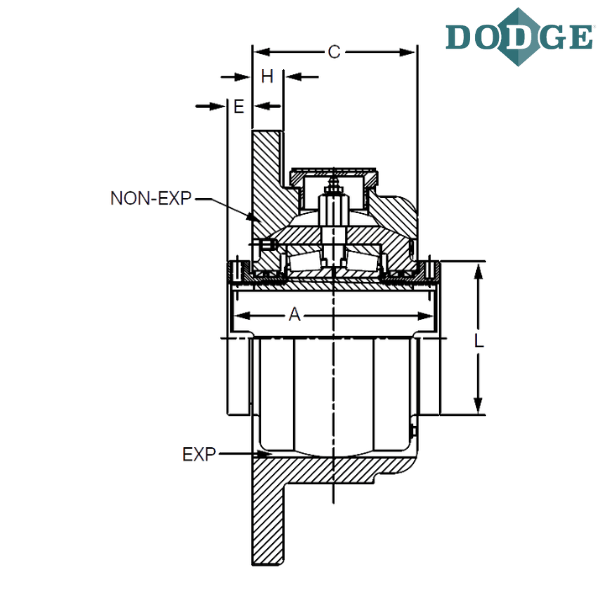

Length Through Bore (A) inch - 10.5
Overall Outer Diameter (B) inch - 21.5
C (inch) - 8.25
D (inch) - 19
E (inch) - 1
F-Bolt Diameter (inch) - 1.125
H (inch) - 1.75
J (inch) - 13.44
L (inch) - 8
Exp* (inch) - 0.625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Steel
SD - Special Duty
* Total Expansion for Expansion Bearing only
** Images are for representation purposes only
