Description
Brand - TIMKEN
Item Number - 09067/09195AB TIMKEN
Also Known As - 09067 - 09195AB
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 19.05
Bore Diameter (d) inch - 0.75
Outer Diameter (D) mm - 49.225
Outer Diameter (D) inch - 1.938
Width (T1) mm - 6.998
Width (T1) inch - 0.2755
Dynamic Load Rating (C1) N - 42800
Dynamic Load Rating (C1) lbf - 9630
Factor (e) - 0.27
Factor (Y) - 2.26
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 11100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 2500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 5050
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1140
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 2.2
Basic Static Radial Load Rating (C0) N - 40500
Basic Static Radial Load Rating (C0) lbf - 9100
Cone Width (B) mm - 19.05
Cone Width (B) inch - 0.75
Cup Width (C) mm - 14.288
Cup Width (C) inch - 0.5625
Effective Center Location (a) mm - -7.4
Effective Center Location (a) inch - -0.29
Outer Diameter of Outer Ring Flange (D1) mm - 53.081
Outer Diameter of Outer Ring Flange (D1) inch - 2.0898
Flange Width (C2) mm - 3.251
Flange Width (C2) inch - 0.128

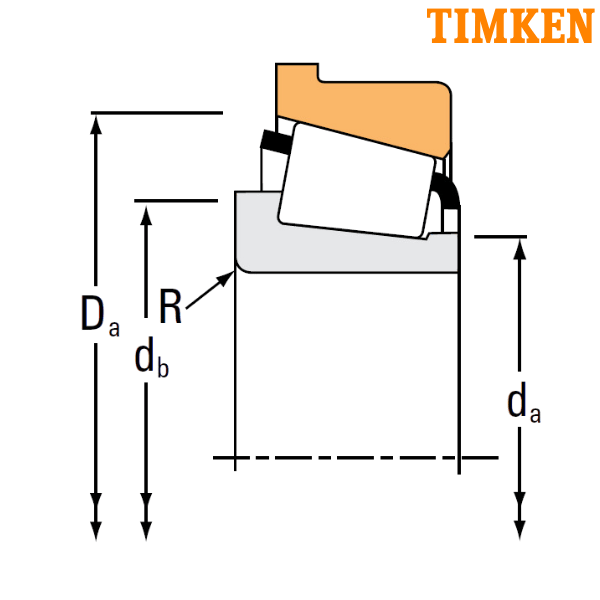

Maximum Shaft Fillet Radius (R) mm - 1.3
Maximum Shaft Fillet Radius (R) inch - 0.05
Cone Frontface Backing Diameter (da) mm - 24
Cone Frontface Backing Diameter (da) inch - 0.94
Cone Backface Backing Diameter (db) mm - 25.5
Cone Backface Backing Diameter (db) inch - 1
Cup Frontface Backing Diameter (Da) mm - 46.5
Cup Frontface Backing Diameter (Da) inch - 1.83
Geometry Factor (G1) - 8
Geometry Factor (G2) - 4
Geometry Factor (Cg) - 0.0452
Weight (kg) - 0.18
Weight (lbs) - 0.4
Inner Part Number - 09067
Outer Part Number - 09195AB
TSF - Single-Row Bearing with a Flange on the Outer Ring
** Images are for representation purposes only
